Descripton : |
According to the Elumatec website, the machine has the following specifications:
- Simultaneous processing of the outer contour as well as the weld seam on the upper and lower surface of the profile
- Four cutter locations for individually assembled sets of cutters
- Spring loaded grooving knives acheive optimum grooving on convex as well as on concave profile sections
- Precise and safe in-feed of heavy and high profile sections (e.g. doors) via adjustable feed mechanism
- Profiles cannot twist as they are fixed by horizontal and vertical clamps
- Cutter diameters of up to 260mm possible for profiles with extreme depth
- Standard equipped blowing device to prevent inaccuracy caused by accumulating swarf
- Versatile thanks to seperate selection of grooving knives and cutters, as well as individual cutter combinations with quick changeover times
- Four cutter positions for freely assorted sets of cutters
- Four cutter spindles for cutter diameters of up to 260mm
- Automatic profile differentation between frames and sashes on cutter positions 1 and 2
Technical information:
- Milling spindle diameter 32mm
- Milling spindle for cutter sets up to 200mm high
- Compressed air supply 7 bar
- Length 980mm, width 1700mm, height 1670mm, weight 590kg

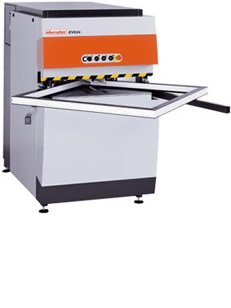

Please note: The picture shown is from our library. Images available upon request. |
